Product Details

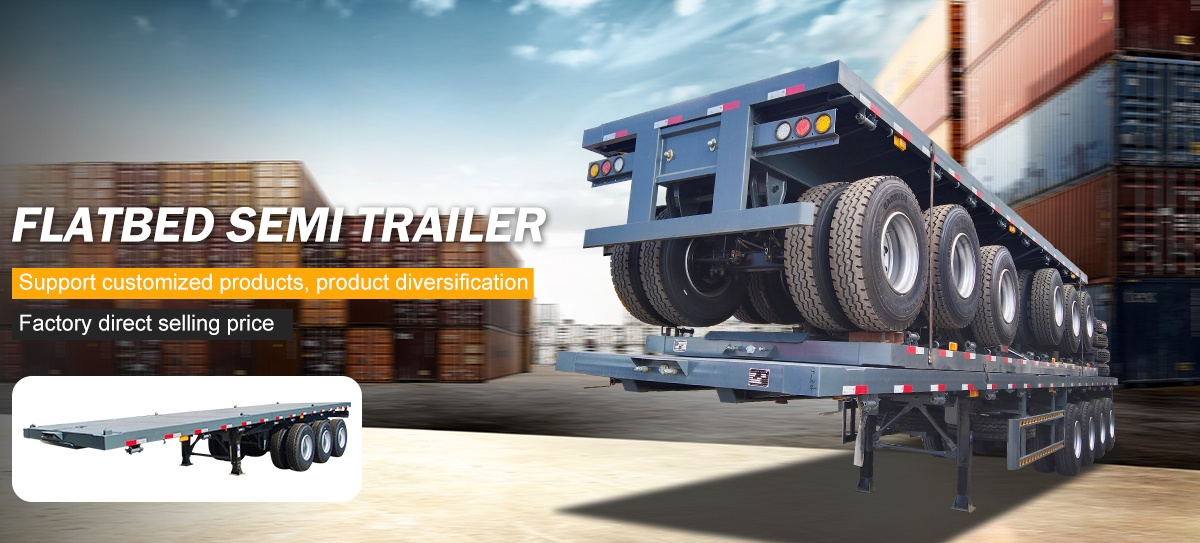

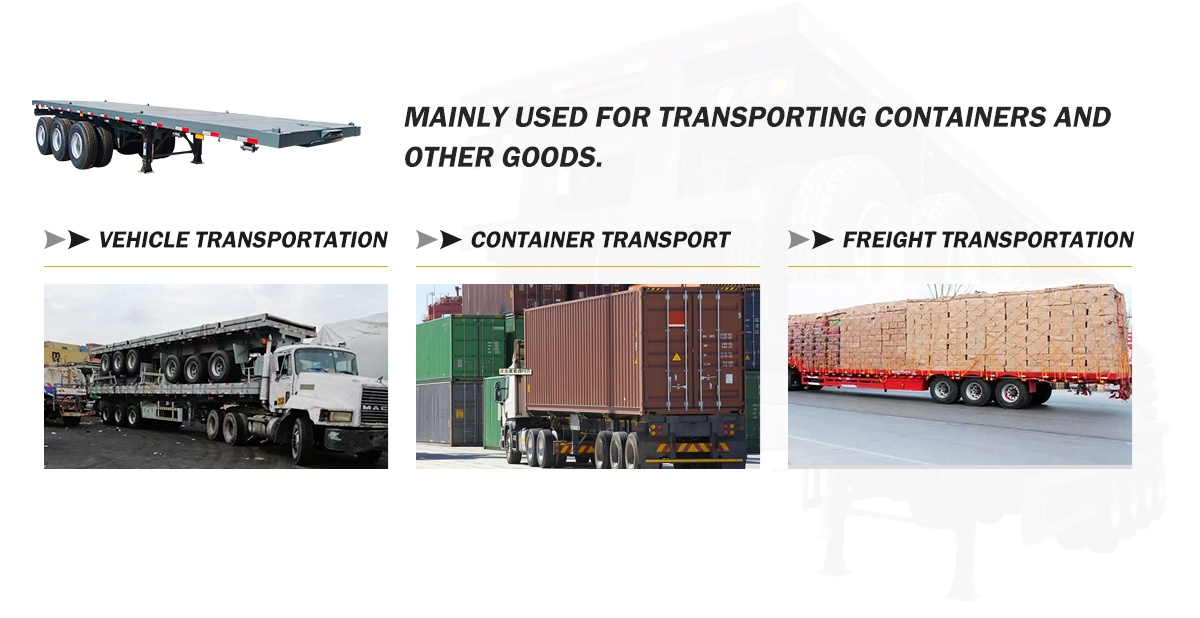

The 3 axle flatbed trailer is the gold standard for container logistics, engineered by Chengda Group to deliver unmatched structural stability and payload efficiency. This heavy-duty platform is precision-welded using high-tensile steel, ensuring 100% technical reliability for transporting 20ft and 40ft containers across diverse terrains while maintaining strict compliance with international ISO standards.

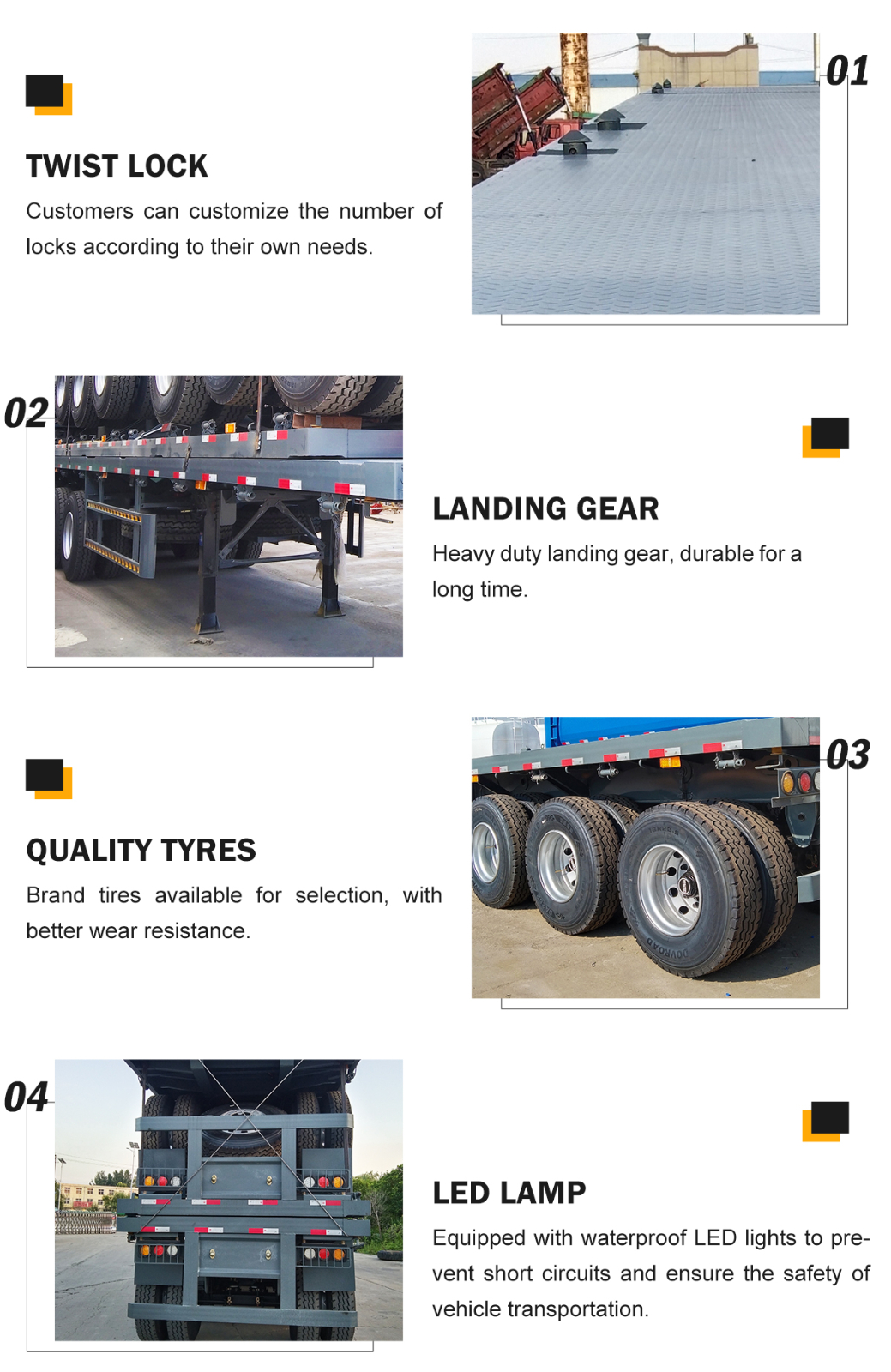

Details Display
Ready to enhance your transport efficiency?
Technical Specifications
| Trailer Model | 3 Axle Flatbed Trailer |
|---|---|
| Overall Dimension(L x W x H)(mm) | 12500 * 2500 * 1600 |
| Loading Weight | 40000kg |
| Axle | 3*13Ton Axle |
| Main Beam | Q345 carbon steel, the height of the main beam is 500mm, the upper plate is 14mm, the down plate is 16mm, the middle plate is 8mm |
| Platform Plate | 3mm Diamond plate |
| Side Beam | Q235 16# channel steel |
| Suspension System | Mechanical Leaf Spring Suspension |
| Leaf Spring | 90(W)mm*13(Thick)mm*10Layer |
| Container Twist Locker | 12pcs container locker |
| Tire Type and Quantity | 12R22.5 12units |
| King Pin | 50#/90# |
| Spare Wheel Bracket | 2pieces |
| Tool Box | 1 standard |
| Landing Gear | Standard 28-ton single-action supporting legs |
| Brake System | Dual line braking system |
| Brake air chamber | six double chamber |
Packing and Shipping
1. By bulk: The cheapest way.
2. By roro: The most protective way.
3. By flat rack container: one flat rack container can hold two 6x4 tractor trucks.
Ready to enhance your transport efficiency?
Customer Visit
We have served 1,000+ customers from more than 100 countries worldwide. Welcome customers to visit our company and production factory.
FAQ
Q: I want to transport the truck by container, is it ok?
A: Yes, it is ok . But we need to take apart the truck. You should reinstall in your country.
Q: How about your product quality?
A: All our spare parts are from the original manufacturers; the quality is 100% guaranteed.
Q: I want to be your agent in my country, is that ok?
A: It’s ok, if your quantity is big, we will consider. For the first time, 50 units is ok.
Q: I want the front two tyres to be bias tyres and the rear 9 tyres to be radial, is it ok?
A: We can make the tyres to suit your requirements to suit your country's needs.
