Ultra Lightweight Aluminum Alloy Fuel Tanker Trailer

Maximize your fleet’s hauling efficiency and significantly increase your profit margins with our Ultra Lightweight Aluminum Alloy Fuel Tanker Trailer. Engineered with high-tensile premium aluminum alloy, this tank trailer drastically reduces tare weight compared to traditional carbon steel or stainless steel models.

Send Inquiry 立即聊天

Chat Now

Product Details

Ultra Lightweight Aluminum Alloy Fuel Tanker Trailer — Maximum Payload, Maximum Profit

Built with marine-grade 5083-H32 / 5454 aluminum alloy, this 3-axle fuel tanker trailer is 2–3 tons lighter than steel equivalents — legally carry 2,000–3,000 extra liters of fuel per trip under highway weight limits. Available in 40,000L, 42,000L, and 45,000L capacities with 1–6 segregated compartments. Equipped with FUWA or BPW axles, JOST landing gear and kingpin, API bottom loading and discharge valves with overfill prevention, and an advanced vapor recovery system. Fully rust-free — ideal for petrol, diesel, gasoline, jet fuel, and kerosene transport across Africa, the Middle East, and South America. Custom blueprints and factory-direct quote available within 24 hours.

Want a factory-direct quote? Tell us your volume and local road limit specs.

Get a Free Quote

Product Gallery

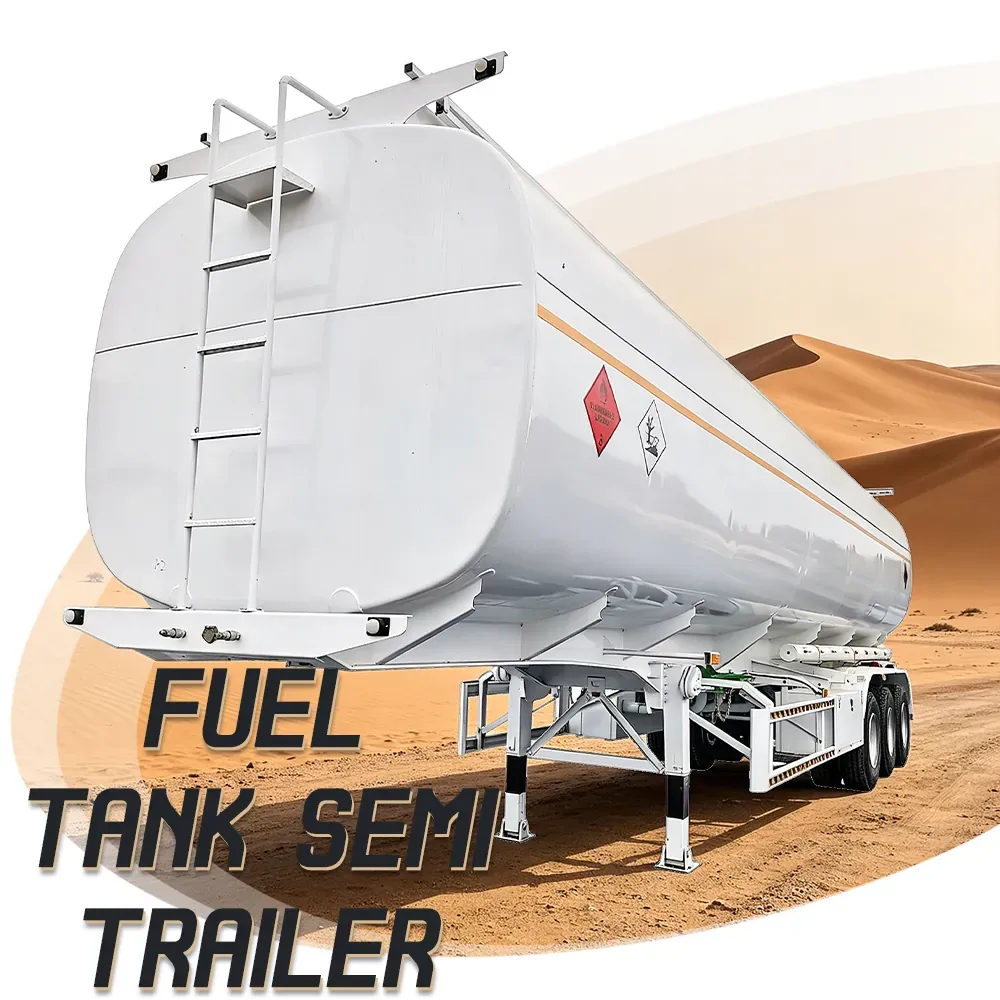

aluminum fuel tanker trailer

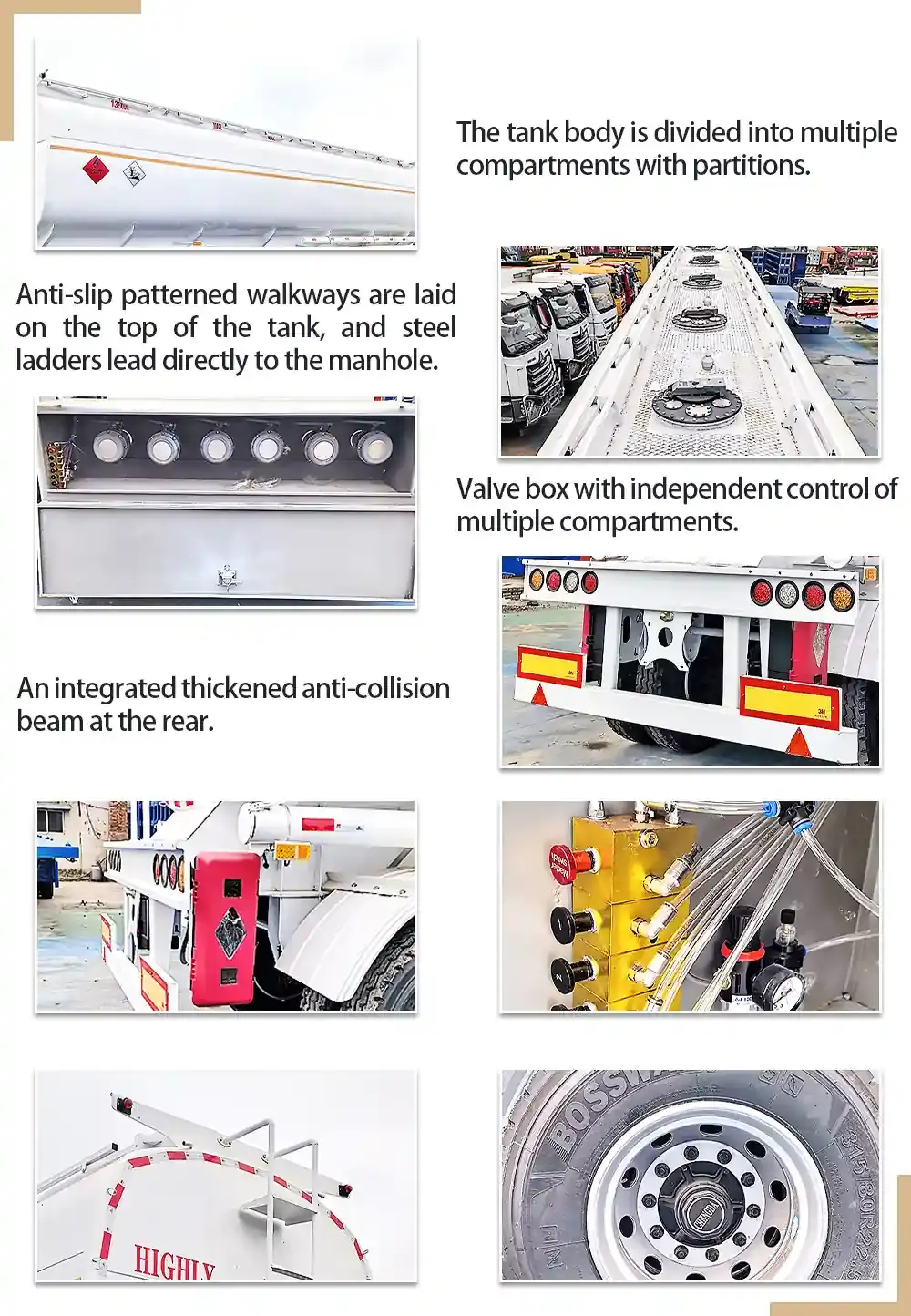

fuel tanker trailer detail

Need a custom compartment layout? Tell us your requirements.

Customize Yours

Technical Specifications

Parameter	Specification
Tank Body
Product Name	Ultra Lightweight Aluminum Alloy Fuel Tanker Trailer
Tank Material	Marine Grade Aluminum Alloy 5083-H32 / 5454
Volume Capacity	40,000L / 42,000L / 45,000L (Customizable)
Transport Medium	Petrol / Diesel / Gasoline / Jet Fuel / Kerosene
Compartments	1 – 6 Segregated Compartments (Buyer Specified)
Chassis & Running Gear
Axle Configuration	3 Axles (FUWA / BPW Optional)
Suspension	Heavy Duty Leaf Spring / Air Suspension
Landing Gear & Kingpin	JOST Standard 2.0" or 3.5" Heavy Duty
Loading & Safety
Discharge System	API Bottom Loading & Discharge with Overfill Prevention
Vapor Recovery	Closed-Loop Vapor Recovery System (Optional)

See why oil fleet owners in 30+ countries choose our aluminum tankers.

Check Price & Availability

Key Advantages

Maximum Payload, Higher ROI

2–3 tons lighter than carbon steel tankers — legally carry 2,000–3,000 extra liters per trip and save fuel on empty return runs.

100% Rust-Free, Pure Cargo

Aluminum naturally resists oxidation and internal scaling — high-grade petrol, diesel, and jet fuel stay 100% pure from loading to delivery.

Superior Thermal Safety

Exceptional heat dissipation lowers spark risk and reduces internal vapor pressure — critical safety advantage for transporting flammable fuels.

Anti-Surge Structural Design

European-style dished bulkheads and optimized internal baffles minimize liquid impact during sudden braking and sharp turns.

Have questions about road regulations in your country? We're here to help.

Talk to an Expert

Advanced Vapor Recovery & Bottom Loading

API Bottom Valves & Adaptors

Eliminates volatile organic compounds (VOCs) escaping into the atmosphere during loading — fully compliant with modern eco-standards.

Closed-Loop Vapor Recovery

Recycles petroleum gases back into the terminal during offloading — reduces product loss and meets international terminal requirements.

Overfill Prevention Sensors

Automatic shut-off mechanism prevents costly and hazardous fuel spills during loading — protecting your investment and the environment.

Multi-Compartment Flexibility

1–6 segregated compartments with independent discharge controls — deliver multiple fuel grades to different stations in a single trip.

Shipping & Global Delivery

Seaworthy Export Packaging

Professional structural protection and anti-corrosion treatment for ocean freight — your trailer arrives in factory condition at any global port.

Bulk Fleet Orders Welcome

Comprehensive customs documentation and fast lead times for multi-unit orders. Custom blueprints matched to your local road regulations within 24 hours.

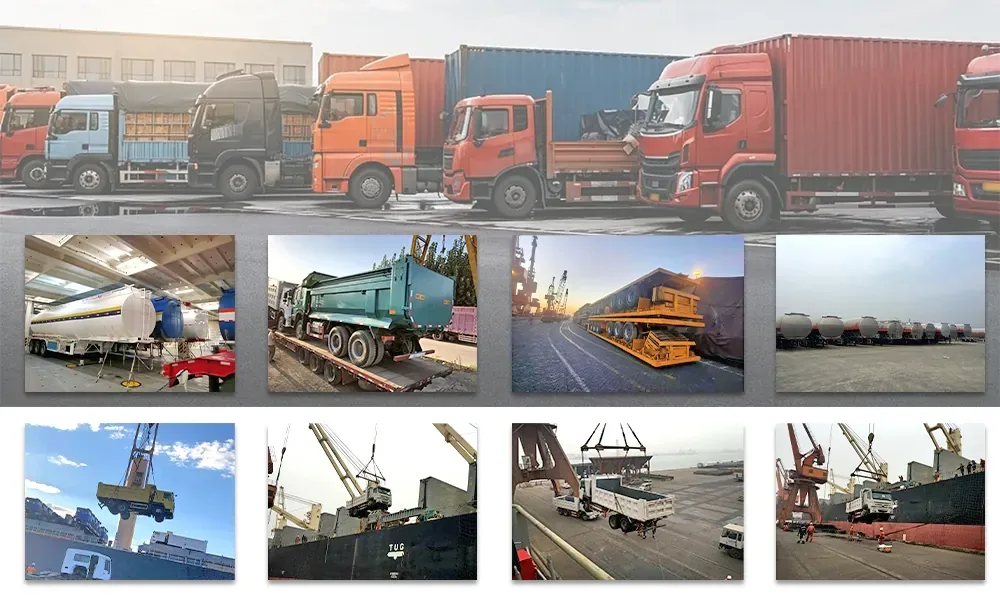

fuel tanker shipping

About Chengda

Professional Semi-Trailer Manufacturer

We design and export fuel tanker, flatbed, lowbed, and specialty semi-trailers — full-cycle service from engineering drawings to doorstep delivery.

Serving 80+ Countries

Fleet owners across Africa, Middle East, and South America trust our ISO-certified manufacturing. Send us your road limits and volume specs for a custom quote.
