3 Axle Dump Trailer
The 3 Axle Dump Trailer delivers an industry-leading combination of rapid unloading efficiency and structural durability for heavy-duty bulk material logistics.
3 Axle Dump Trailer
- Home
- > Product
- > Trailer
- > Dump Trailer
- > 3 Axle Dump Trailer
3 Axle Dump Trailer
Send Inquiry
Chat Now
Product Details
The 3 Axle Dump Trailer delivers an industry-leading combination of rapid unloading efficiency and structural durability for heavy-duty bulk material logistics.
Condition: 100% Brand New
Use: Sand, Gravel, Ore, and Construction Material Hauling
Configuration: High-Tensile U-Shaped Box + HYVA Hydraulic Lift + FUWA Axles
Delivery: Within 15-25 Working Days After Deposit
Ready to enhance your transport efficiency?

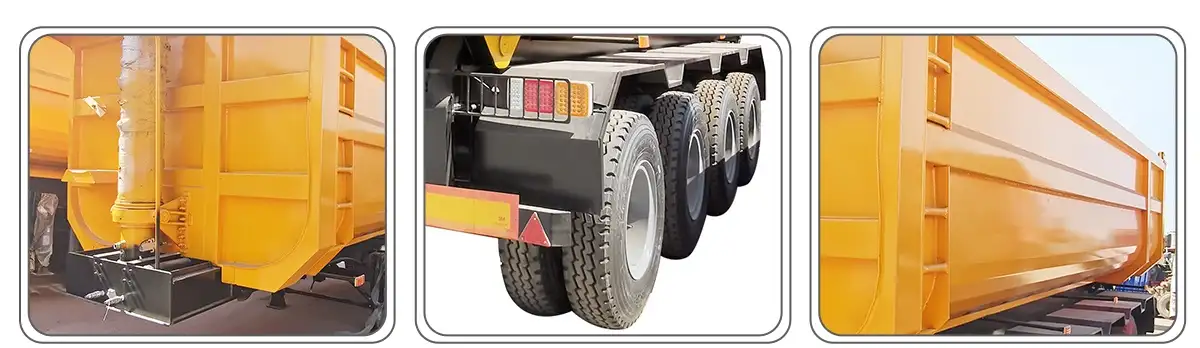

Advantages of 3 Axle Dump Trailer
Premium Hydraulic Lifting Efficiency: The 3 axle dump trailer integrates a world-renowned HYVA front-lifting hydraulic cylinder system, guaranteeing faster tipping speeds and excellent stability during discharge.
Exceptional Structural Durability: Main beams are engineered using high-tensile steel via submerged arc welding, protecting the semi trailer from frame deformation under concentrated weight loads.
Optimized U-Shaped Box Design: The specialized U-shaped structural geometry prevents bulk materials like wet earth or ore from sticking to the corners, maximizing residue-free unloading efficiency.
Heavy-Duty Wear-Resistant Steel: Fabricated with high-grade manganese or abrasion-resistant steel plates, the container body resists severe impacts from coarse aggregate across demanding application fields.
Enhanced Safety and Braking: Equipped with a dual-line air brake system and premium FUWA or BPW axles, this 3 axle dump trailer maintains perfect operational balance on steep mining tracks.
【Technical Specifications】
| Parameter | Detailed Specifications |
|---|---|
| Model Name | 3 Axle Dump Trailer |
| Loading Capacity Range | 30 Tons – 60 Tons (Customizable specifications) |
| Overall Dimensions | 8,500mm – 10,500mm x 2,500mm x 3,600mm |
| Box Material Thickness | Floor: 5mm - 8mm; Side Wall: 4mm - 6mm Manganese Steel |
| Hydraulic Lift System | HYVA Front Lifting Cylinder Set |
| Axle Specification | 3 Axles x 13-Ton / 16-Ton FUWA or BPW Brands |
| Suspension Type | Heavy-Duty Mechanical Leaf Spring / Air Suspension Optional |
| Tire Specification | 12.00R20 Radial Tires / 12R22.5 Tubeless (12 Units + 1 Spare) |
Ready to enhance your transport efficiency?

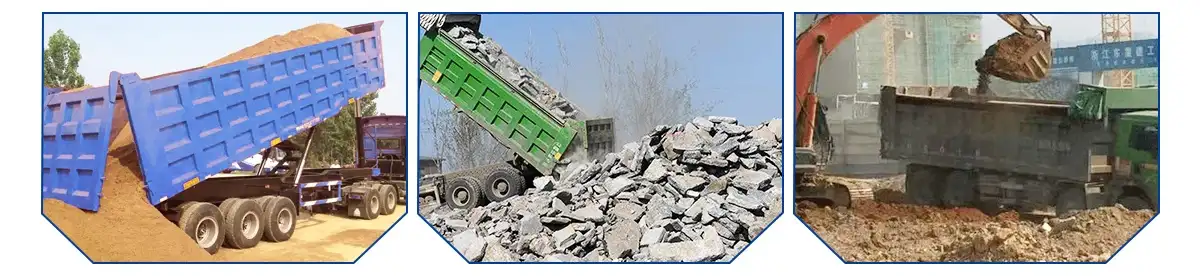

Application Scenarios
The 3 axle dump trailer is exceptionally effective for open-pit mining and quarry logistics, effortlessly moving massive volumes of coal, iron ore, and blasted stone over rough off-road haul roads. It is also a premier choice in infrastructure and construction sectors, delivering sand, gravel, and crushed aggregate to highway and urban build sites with high efficiency. Furthermore, the robust technical specifications and customizable container volume make the 3 axle dump trailer highly reliable for bulk port logistics, rapidly shifting loose materials from cargo ships to industrial warehousing yards.
【Customer Visits】
With nearly two decades of export expertise in the global heavy vehicle sector, Chengda Group frequently hosts international customer visits at our state-of-the-art facilities. Procurement teams from Africa, Central Asia, and South America regularly inspect our active 3 axle dump trailer inventory to witness our rigorous structural welding quality, automated plasma cutting, and hydraulic pressure testing standards firsthand.
Ready to enhance your transport efficiency?
【FAQ】
Q1: Can the box thickness and material type be customized for heavy mining?
Yes, we can upgrade the 3 axle dump trailer with NM450 or NM500 ultra-high-wear-resistant steel plates to handle abrasive materials like granite and iron ore.
Q2: What is the typical production and delivery cycle for an order?
Standard configurations for this tipper semi trailer are generally ready for seaport dispatch within 15-25 working days after deposit confirmation.
Q3: Do you supply original replacement parts for the hydraulic lift and axles?
Absolutely. We supply full lifecycle accessories support for the 3 axle dump trailer, ensuring rapid global shipping on original HYVA seals, brake linings, and mechanical leaf springs.
