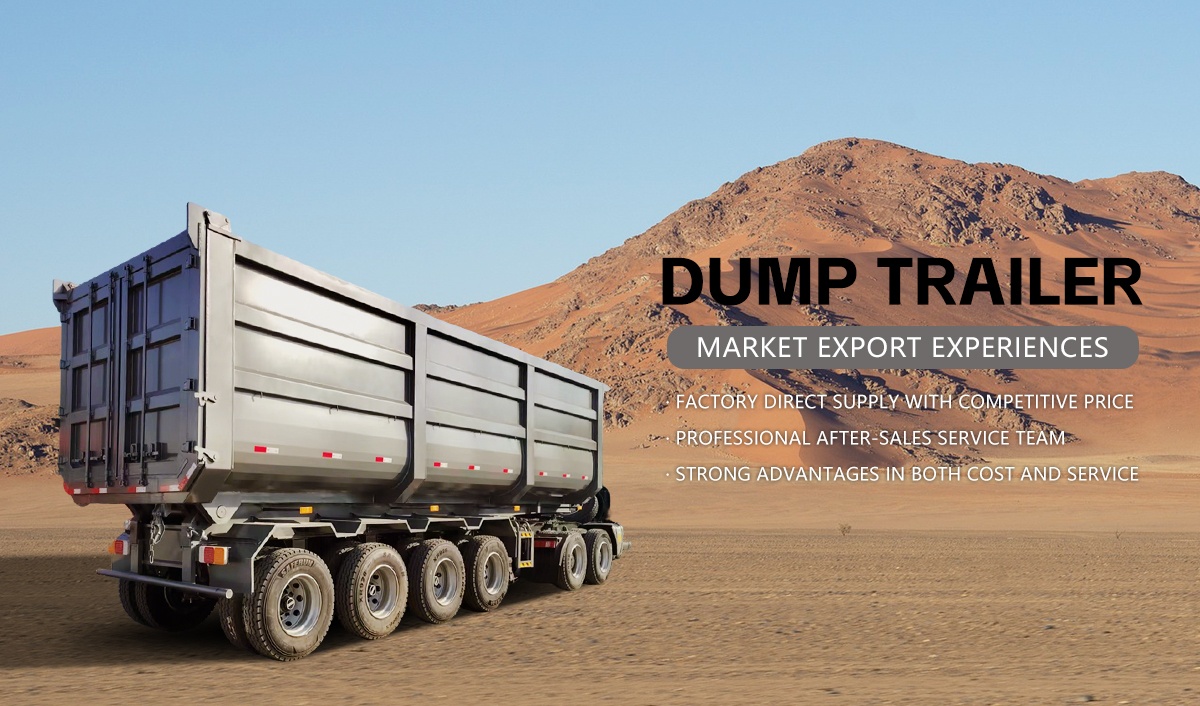

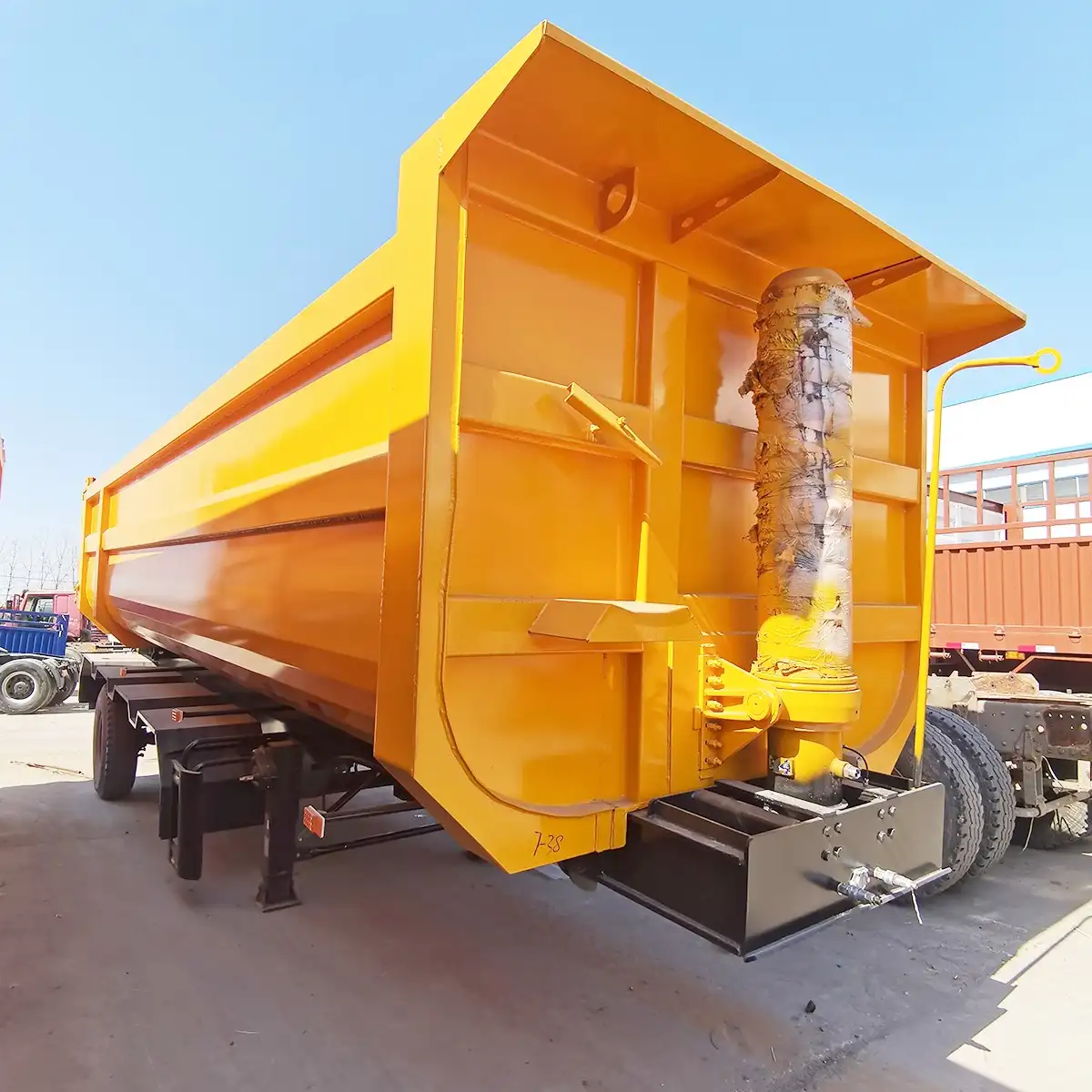

4 Axle Dump Trailer
The 4 axle dump trailer is engineered for maximum payload and exceptional stability, providing a high-efficiency solution for bulk material transportation.
4 Axle Dump Trailer
- Home
- > Product
- > Trailer
- > Dump Trailer
- > 4 Axle Dump Trailer
4 Axle Dump Trailer
Send Inquiry
Chat Now

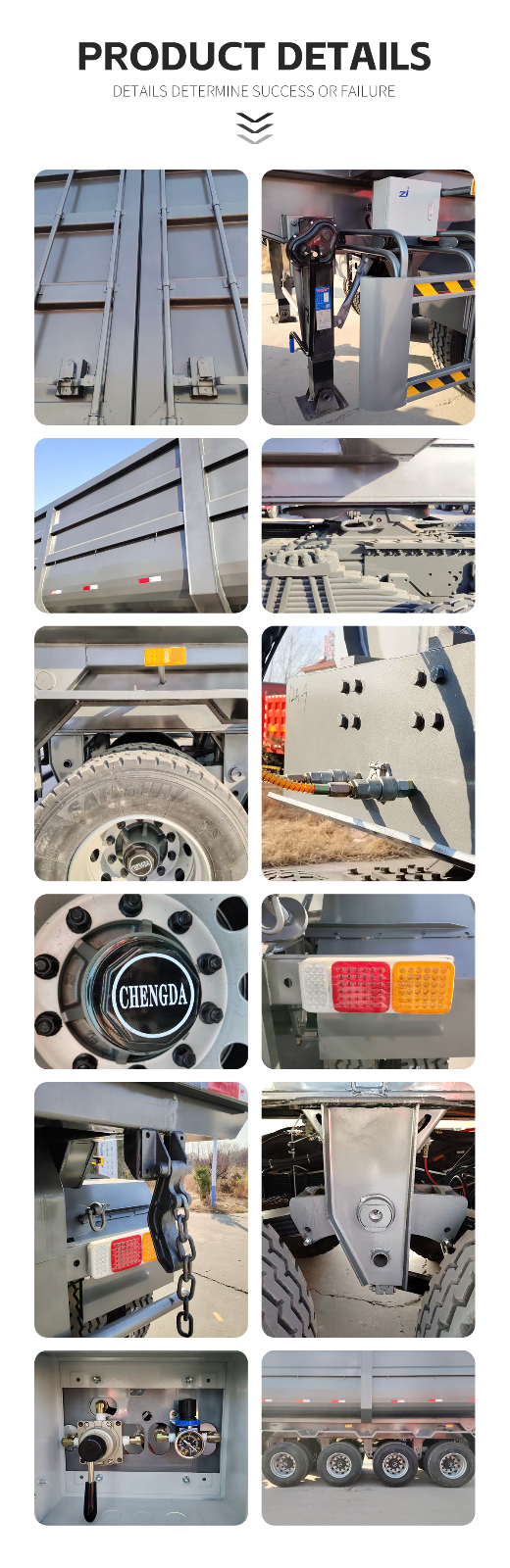

Product Details
The 4 axle dump trailer is engineered for maximum payload and exceptional stability, providing a high-efficiency solution for bulk material transportation.
Dimensions: 9,500mm x 2,500mm x 3,500mm (Customizable)
Use: Transporting Coal, Ore, Sand, and Construction Aggregates
Configuration: 4 Axles (Fuwa/BPW) & HYVA Hydraulic Lifting System
Delivery: Within 15-25 Working Days After Deposit
Ready to enhance your transport efficiency?
Core Advantages of 4 Axle Dump Trailer
Enhanced Payload Distribution: The additional axle on this 4 axle dump trailer allows for a higher weight limit and better pressure distribution, meeting strict road regulations while maximizing your profit per trip.
High-Tensile Steel Body: Constructed from Q345B high-strength steel with automated submerged arc welding, the chassis and cargo box offer 100% reliability under extreme impact and heavy loading.
Premium HYVA Hydraulic System: Equipped with a world-class HYVA front-lifting cylinder, the 4 axle dump trailer ensures smooth, rapid, and safe unloading cycles even in high-frequency operations.
Anti-Stick U-Shape Design: The streamlined U-shaped structure reduces the center of gravity and prevents damp materials like soil or clay from sticking to the corners during the dumping process.
Heavy-Duty Mechanical Suspension: Utilizing our 15+ years of expertise, we integrate reinforced leaf spring suspension to protect the 4 axle dump trailer when navigating rocky mining terrains.
Technical Specifications
| Parameter | Detailed Specifications |
|---|---|
| Model Type | 4 axle dump trailer (End Dump) |
| Payload Capacity | 60,000 kg – 80,000 kg |
| Main Beam | 500mm Height (High-tensile Q345B) |
| Axle Brand | 4 x 13T / 16T Fuwa or BPW Brand |
| Lifting Cylinder | HYVA Front Lifting Series |
| Tires | 12.00R20 Radial or 12R22.5 Tubeless (16+1 Spare) |
| Braking System | WABCO Relay Valve & Dual-line Pneumatic |
Ready to enhance your transport efficiency?

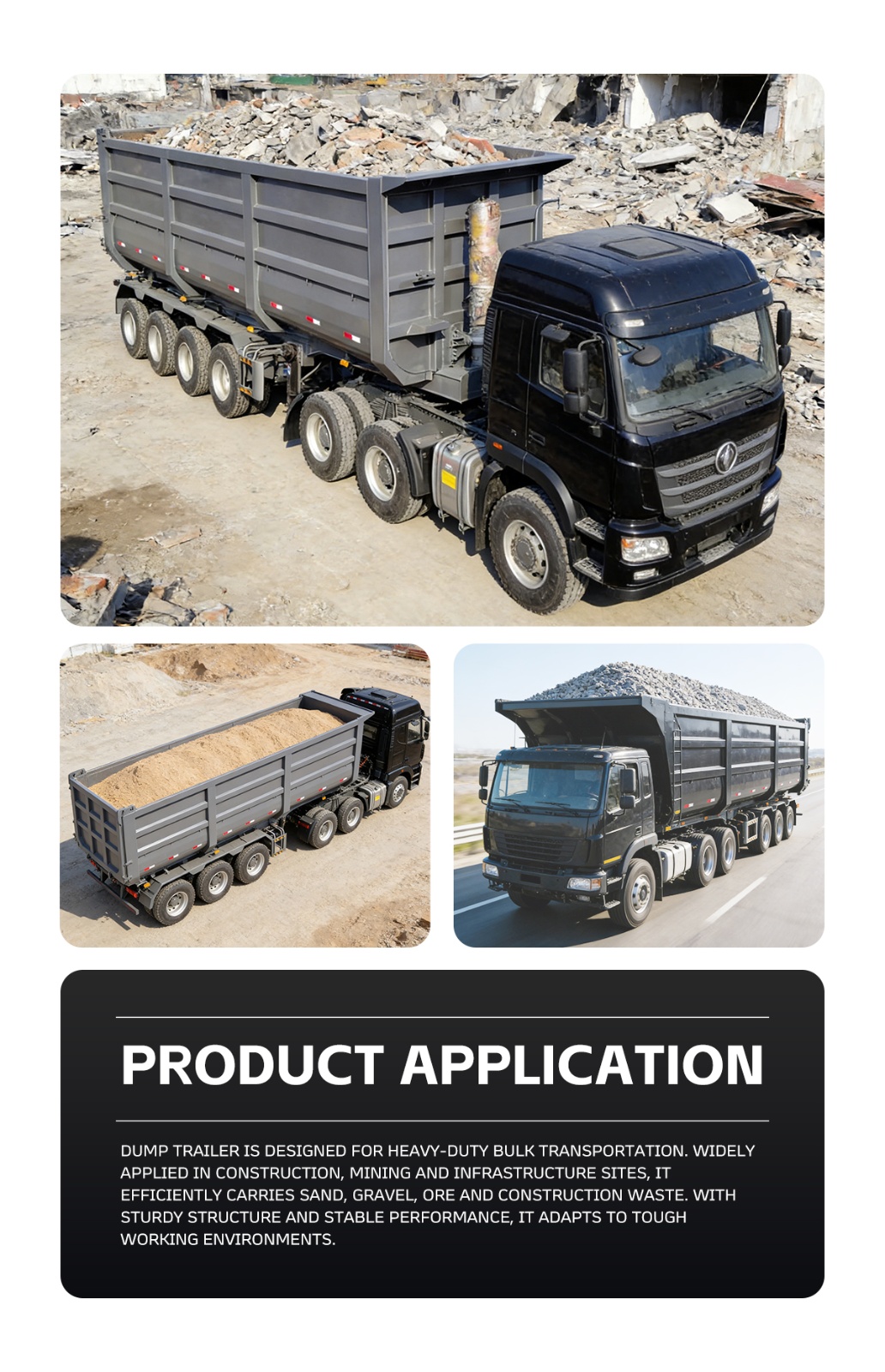

Application Scenarios
Heavy-Duty Mining Operations: The 4 axle dump trailer is exceptionally effective in open-pit mines, where the high-capacity body and reinforced axles are required to move iron ore and coal across rugged off-road tracks.
Large-Scale Infrastructure Projects: It is the preferred choice for dam and highway construction. This 4 axle dump trailer maintains stability while transporting large volumes of gravel and earthmoving aggregate to the site.
Bulk Material Logistics: The ruggedized technical specs make this trailer indispensable for transporting clinker, sand, or industrial waste between ports and processing facilities with high turnover efficiency.

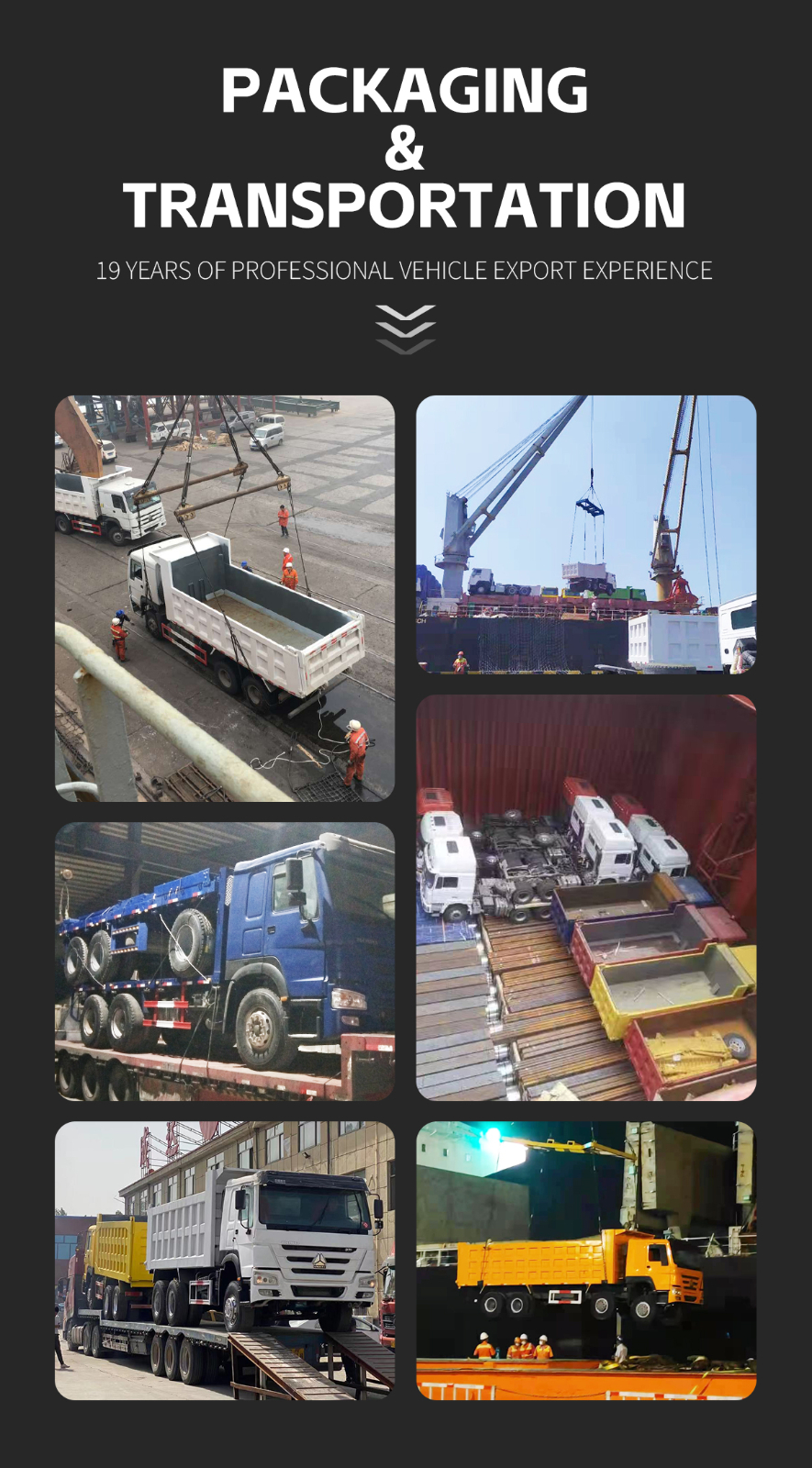

Packaging and Shipping
To protect the structural integrity and exterior finish of your 4 axle dump trailer, we provide professional packaging and shipping solutions. Every unit undergoes a comprehensive multi-layer anti-corrosive wax treatment. We typically utilize RORO or Bulk Carrier methods to ensure the most secure and cost-effective delivery, conducting a final technical audit before shipment to guarantee 100% mission readiness.
Ready to enhance your transport efficiency?
Customer Visits
With nearly 20 years of expertise, Chengda Group frequently hosts customer visits at our modern manufacturing facilities. Clients from Africa, Central Asia, and Southeast Asia regularly inspect our 4 axle dump trailer inventory and witness our automated welding and hydraulic stress-testing processes firsthand. These visits allow international buyers to verify our engineering quality before finalizing bulk orders.
