Shacman 10 Wheeler 420HP Tractor Head
Send Inquiry
Chat Now
Product Details

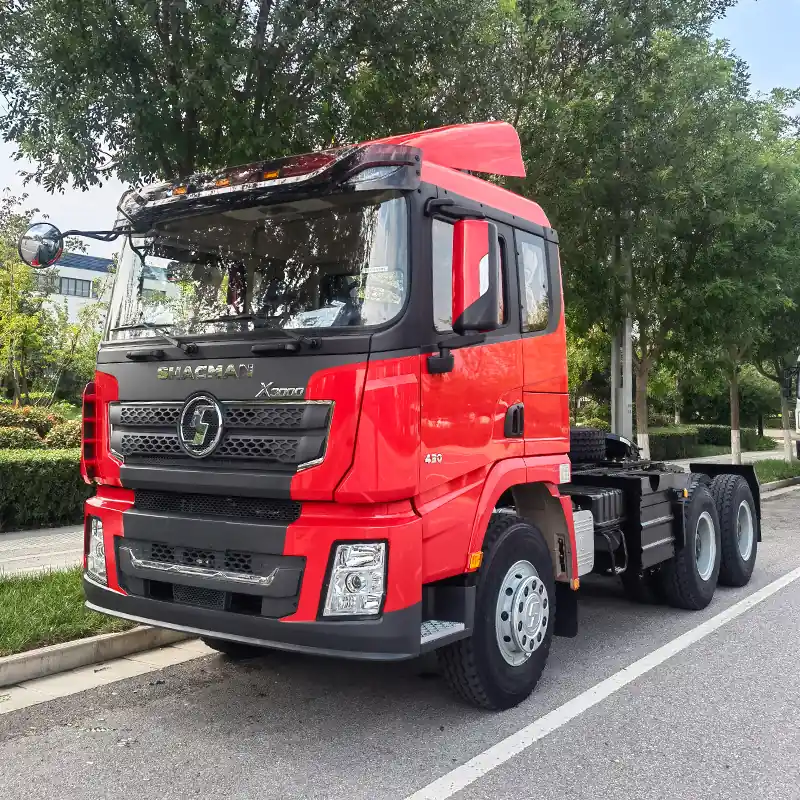

The Shacman X3000 10 wheeler 420HP tractor head (globally recognized as a premier 6X4 heavy-duty prime mover) is engineered to deliver a world-class balance of unrelenting pulling power, high operational reliability, and optimized fluid economy. Specifically configured with a 10-wheel tandem drive layout and a highly responsive 420-horsepower engine matrix, this truck serves as the structural backbone for long-haul transport networks, port logistics, and heavy-duty tipping or bulk trailer setups. Featuring an aerodynamic, European-inspired high-roof cabin with a low drag coefficient, the X3000 slashes wind resistance on international trunk lines while providing drivers with an elite, fatigue-free operating environment to secure peak fleet uptime.
Ready to enhance your transport efficiency?
Specifications
| Technical Parameter | Industrial Specification Data (Standard Export Matrix) |
|---|---|
| Model Designation | Shacman X3000 10 Wheeler 420HP Tractor Truck Series |
| Gross Combination Weight (GCW) | 50,000 kg – 85,000 kg Heavy Load Towing Capacity |
| Curb Weight (Unladen Mass) | Approx. 8,900 kg – 9,350 kg |
| Engine Platform Specs | WEICHAI WP12.420 High-Pressure Common-Rail Diesel Engine |
| Engine Horsepower Output | 420 HP (309 kW) @ 1,900 rpm | Max Torque: 2,000 N.m – 2,110 N.m |
| Displacement Profile | 11.596 Liters Inline 6-Cylinder Turbocharged Intercooled Diesel |
| Gearbox / Transmission | FAST 12-Speed Manual with Synchronizer Matrix (12 Forward + 2 Reverse) |
| Front Steering Axle Type | Hande MAN Tech 7.5-Ton or 9.5-Ton High-Capacity Non-Driving Axle |
| Rear Driving Axle Type | Hande MAN Tech 13-Ton or 16-Ton Double Reduction Axles (Ratio: 3.73 / 4.26 / 4.76) |
| Tire Hardware Setup | 12R22.5 Tubeless Tires | 315/80R22.5 | 12.00R20 Radial Steel Wire Tires |
| Fuel Tank Capacity | 400L / 600L Premium Heavy Aluminum Alloy Fuel Tank |
| Fifth Wheel Spec (Saddle) | JOST 50# (2.0-inch) or JOST 90# (3.5-inch) High-Strength Type |
| Braking Safety Grid | Dual Circuit Compressed Air Brake; WABCO Relay Valve; Engine EVB Support |
Advantages of Shacman 420HP Tractor Head
Optimized Weichai 420HP Core Engine: Driven by a heavy-duty Weichai WP12 electronic common-rail diesel engine. The 420HP profile outputs its peak torque at low engine RPM arrays, giving your trucks massive gradeability on steep mountain inclines while lowering fuel burn.
Synchronized FAST Transmission Grid: Paired with a heavy-torque FAST manual transmission system featuring dual countershaft architecture. It guarantees seamless gear shifts, efficient engine power output, and exceptional mechanical lifespan.
MAN Tech Military-Grade Driving Axles: Built with certified Hande 13-Ton / 16-Ton double reduction axles engineered with licensed MAN commercial vehicle technology. Outfitted with inter-wheel and inter-axle differential locks to conquer mud, sand, and unpaved mine tracks.
Aerodynamic & Cost-Saving Cab Geometry: The entire cabin shell, side wind-deflector panels, and roof spoiler shapes have been hydro-dynamically refined to minimize crosswind drag, helping fleets shave up to 4% off long-haul fuel overhead.
Luxury Air Ride Fatigue Cushioning: The high-roof sleeper cabin utilizes a full 4-point air suspension network coupled with an adjustable hydraulic driver’s seat, dual extra-wide berths, a full wrap-around dash assembly, and integrated heavy climate control.
High-Yield Torsional Steel Skeleton: The cold-riveted ladder chassis frame is stamped from specialized single-layer high-tensile steel, optimizing unladen vehicle weight to ensure operators can haul maximum payload margins legally.
Ready to enhance your transport efficiency?

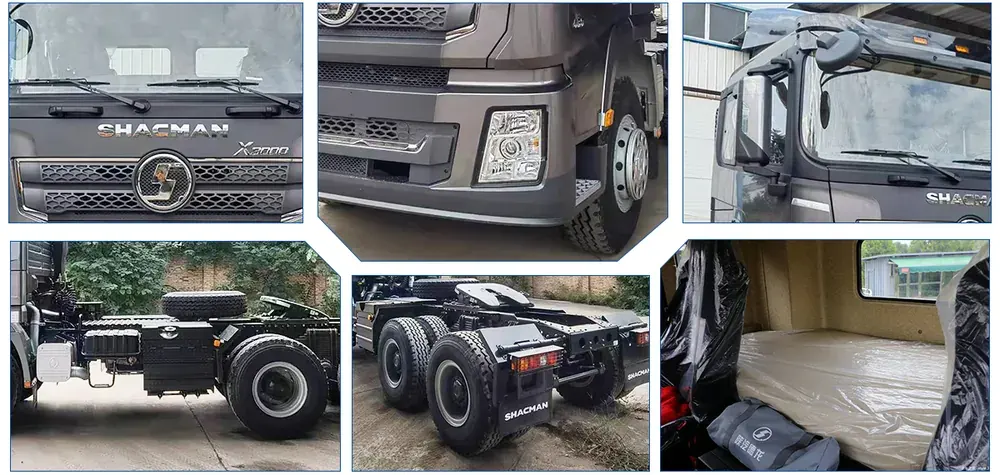

Details Display

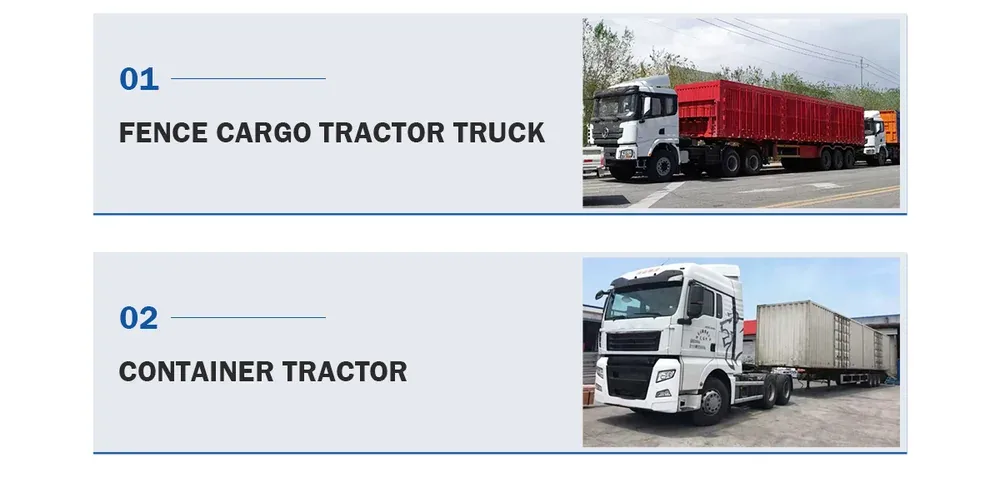

Applications
The Shacman X3000 10 wheeler 420HP prime mover is an adaptable profit-earner across premium cross-border supply networks:
Intermodal Port & Fleet Logistics: Easily couples with 40ft skeleton, multi-axle flatbed, or side-wall semi-trailers to distribute international ocean containers and mixed freight over thousands of kilometers.
Heavy Dry Cargo Cargo Shuttles: Perfectly suited for pulling multi-deck livestock haulers, high-sided fence trailers, and bulk grain loaders over varying regional road surfaces.
Liquid Fuel & Gas Distribution: The low center of gravity and stable highway tracking provide the necessary safety compliance to tow large-volume 42,000L to 51,000L fuel tanker trailers.
Heavy Industrial Infrastructure Projects: Delivers the massive low-gear tractive torque required to pull lowboy drop-deck trailers loaded with heavy excavators, road rollers, and structural steel beams.
About Us

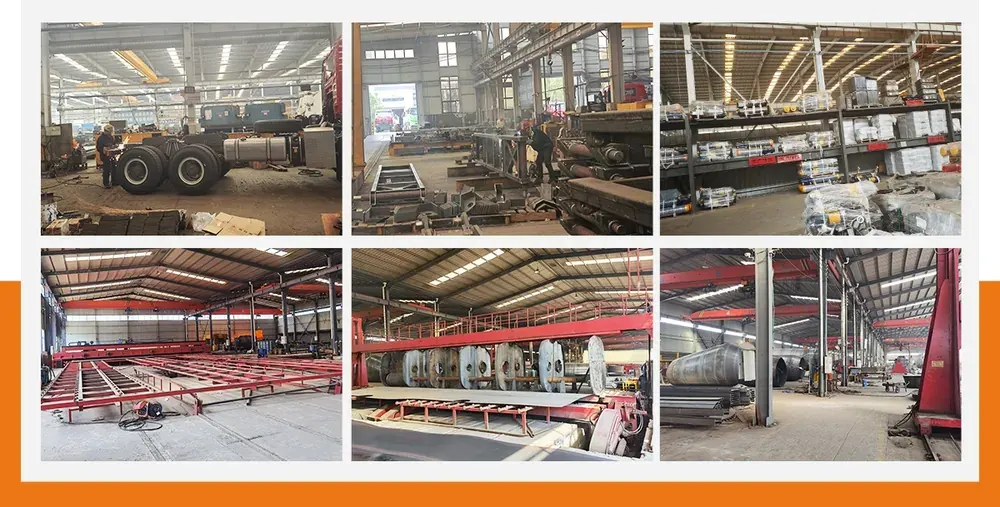

With over two decades of dedicated heavy vehicle production, reconditioning, and wholesale operations under our belt, we offer an expert technical design framework and a rigorous quality management protocol. We excel at satisfying personalized config demands and stand firmly by our clients with continuous, lifetime accessories support for every asset deployed.
Ready to enhance your transport efficiency?
Customer Visits
We believe total transparency builds the strongest B2B partnerships. Chengda Group has proudly welcomed commercial fleet owners and heavy-equipment logistics firms from more than 80 nations, across South America, Central Asia, and East, West, and Southern Africa. Visitors gain unrestricted access to tour our assembly areas, evaluate our frame geometries, and test drive our Shacman trucks under simulated loads. Our dedicated international service desk provides fluent translation and technical consultation to ensure a seamless buying experience from day one.

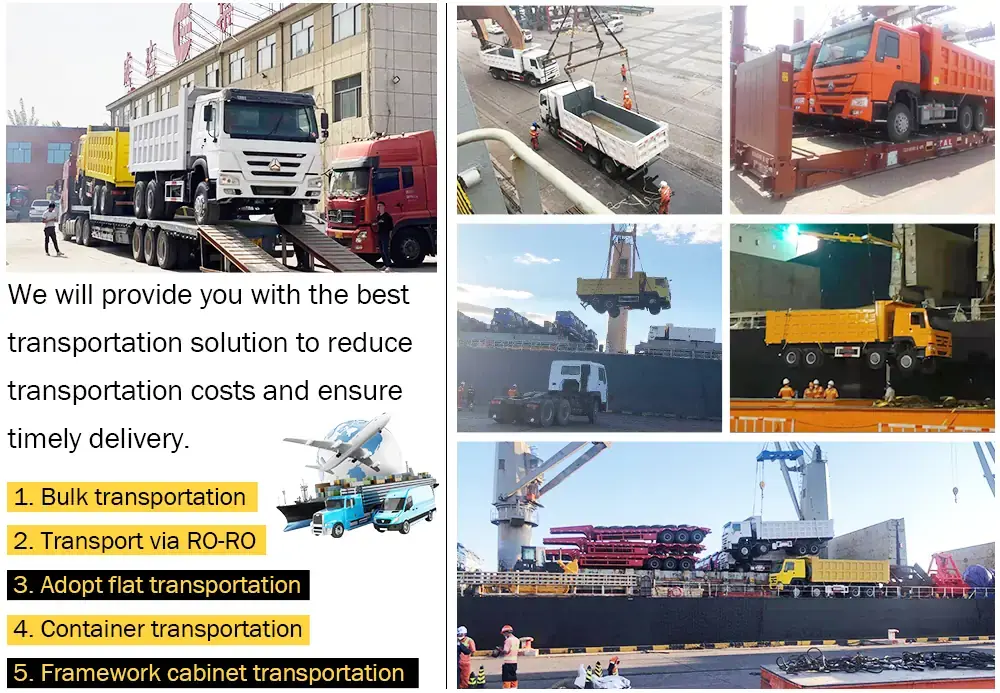

Packaging & Shipping
Our logistics team leverages an expansive maritime network—spanning roll-on/roll-off (Ro-Ro) vessels, bulk cargo ships, flat-rack configurations, and container transport—to lock in the most secure and economical freight options for your fleet. To combat corrosive salt air during ocean transit, every Shacman X3000 420HP tractor head receives a thick application of specialized marine-grade anti-rust wax before port departure. We guarantee every single vehicle clears a multi-point pre-delivery inspection (PDI), keeping our 100% client satisfaction track record intact.
FAQ
Q1: Why is the 420HP Weichai engine considered the optimal choice for cross-border hauling?
The 420HP setting provides the perfect "sweet spot" for long-haul operations. It yields massive torque values at low RPM intervals, which means the truck does not need to waste fuel or undergo constant downshifting when dealing with steep terrain or legal maximum loads, cutting overall wear and tear.
Q2: Can we adjust the rear axle gear ratios depending on our local road conditions?
Yes, absolutely. For flat highway linehauls and container deliveries, we recommend a 3.73 speed ratio for maximum cruise speed. If your operations involve rough mining fields or mountainous logging trails, we can configure a 4.26 or 5.73 hub reduction axle to deliver greater low-speed torque.
Q3: How does Chengda Group handle spare parts supply if we manage a fleet remotely?
We provide absolute lifetime accessories support. We maintain a large strategic parts inventory packed with original Weichai engine blocks, FAST gears, Hande axle seals, filters, and brake chambers at factory-direct wholesale pricing. Replacement kits can be shipped via top international air couriers to minimize any unexpected fleet downtime.
