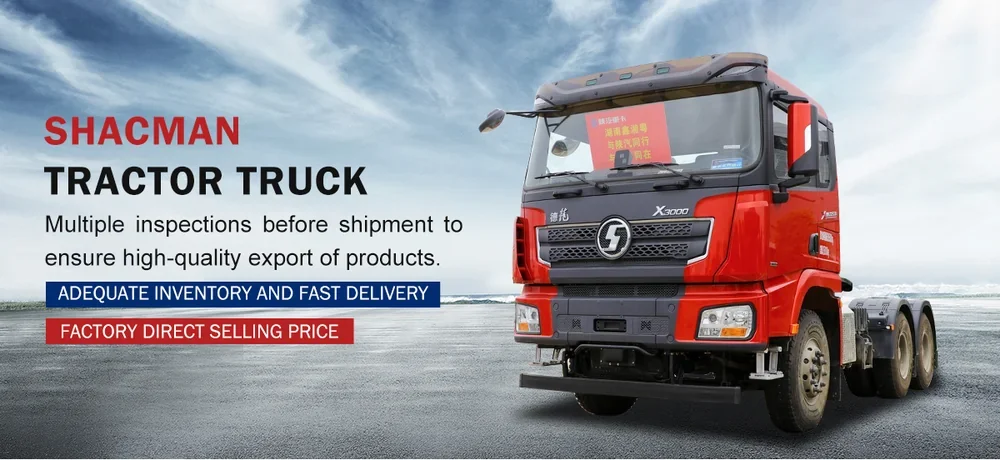

The Shacman X3000 6X4 tractor head (also highly regarded globally as the Shaanxi Delong X3000 prime mover) represents the pinnacle of high-end heavy-duty logistics and trans-regional transport engineering. Designed to compete on the international stage, the X3000 boasts a European-style cabin with a low drag coefficient, delivering elite aerodynamics and up to 4% fuel savings. At its heart lies the industry-renowned "Golden Powertrain" matrix—combining a high-torque Weichai engine, a robust FAST manual or automated gearbox, and military-grade Hande axles. Whether you are expanding a fleet for cross-border logistics, heavy container distribution, or demanding mine hauling across Africa, Central Asia, and Southeast Asia, the Shacman X3000 offers unmatched uptime, driver comfort, and premium resale value.
Ready to enhance your transport efficiency?
| Technical Parameter | Industrial Specification Data (Standard Export Matrix) |
|---|---|
| Truck Model Series | Shacman X3000 6X4 Tractor Head / Prime Mover |
| Gross Combination Weight (GCW) | 50,000 kg – 90,000 kg Extreme Towing Capacity |
| Curb Weight (Chassis Mass) | Approx. 8,870 kg | 9,300 kg |
| Engine Brand & Platform | WEICHAI WP12 / WP13 Common Rail Heavy Duty Diesel |
| Horsepower Output Ratings | 380 HP / 420 HP / 430 HP / 440 HP / 480 HP Options |
| Emission Standard Compliance | Euro 2 / Euro 3 / Euro 5 Matrices |
| Transmission Gearbox | FAST 12-Speed Manual with Synchronizer & Dual Countershafts |
| Front Steering Axle Spec | Hande MAN Tech 7.5-Ton / 9.5-Ton Non-Driving Steering Axle |
| Rear Driving Axles Spec | Hande MAN Tech 13-Ton / 16-Ton Double Reduction Axles (Ratio: 3.7 - 4.76) |
| Tire Hardware Setup | 12R22.5 Tubeless Tires | 315/80R22.5 | 12.00R20 Radial Steel Wire Tires |
| Fuel Tank Fleet Setup | 600L + 400L Large Capacity Dual Aluminum Fuel Tanks |
| Fifth Wheel Saddle Array | JOST 50# (2.0 inch) or JOST 90# (3.5 inch) Heavy Duty Saddle |

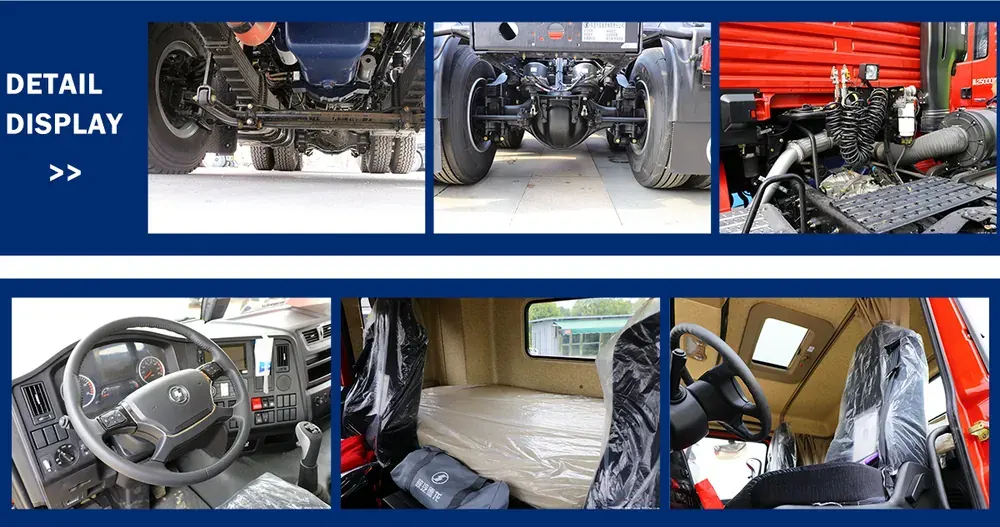

The Legendary Golden Powertrain: Powered by an ultra-reliable Weichai WP12 or WP13 engine paired with a multi-speed FAST aluminum-alloy transmission. This combination offers high low-end torque, rapid throttle response, and minimal power loss over long hauls.
High-Strength Hande MAN Technology Axles: Outfitted with 13-ton or 16-ton Hande rear driving axles featuring advanced MAN technology. Known for their exceptional load capacity, low oil-temperature generation, and elongated oil change intervals.
Aerodynamic & Fuel-Efficient Design: The cab profile, side wind deflectors, and adjustable roof spoilers have undergone extensive wind-tunnel testing, effectively slashing wind resistance and markedly improving highway fuel mileage.
Premium Driver Comfort & Safety: The high-roof sleeper cabin utilizes a 4-point air suspension system to smooth out the roughest roads. Inside, drivers enjoy an ergonomic wrap-around dashboard, dual wide berths, automatic climate control, and superior noise isolation (reduced to 65dB).
Lightweight Yet Rugged Chassis: Built with single-layer high-tensile steel frames that optimize unladen weight without compromising structural strength. This allows fleet operators to maximize payload limits per run legally.
Advanced Multi-Layer Corrosion Shielding: The entire cabin structure is treated with an advanced electrophoretic primer and coated with top-tier premium weather-resistant finishes to stop rust before it starts in humid tropical or saline coastal ports.
Ready to enhance your transport efficiency?

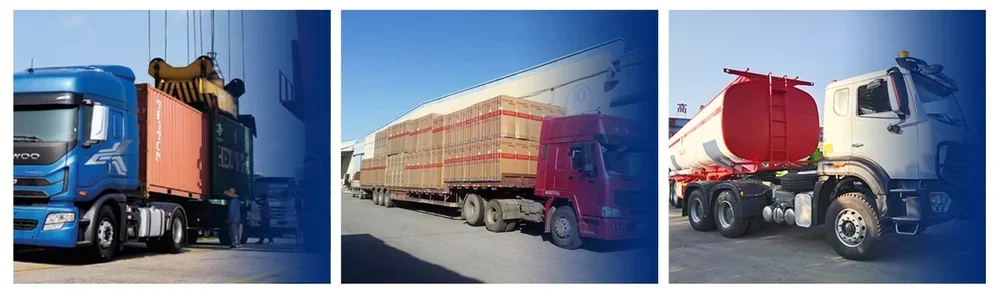

The Shacman X3000 6X4 prime mover is a versatile backbone across vital global supply lines:
Cross-Border Long-Haul Freight: Seamlessly pulls heavy dry vans and refrigerated trailers across thousands of kilometers of highway networks with consistent cruise efficiency.
Port Container Intermodal Logistics: Perfect for rapid turnaround operations, shifting high-tonnage 20ft and 40ft international sea containers from dockside berths to inland depots.
Liquid Fuel & Chemical Distribution: Highly stable chassis tracking makes it the safest choice for coupling with carbon steel or stainless steel fuel tanker trailers.
Heavy Machinery Overdimensional Moving: Delivers the massive low-gear tractive force required to tow multi-axle lowbed trailers loaded with heavy excavators, bulldozers, and industrial components.
Ready to enhance your transport efficiency?
We believe total transparency builds the strongest B2B partnerships. Chengda Group has proudly welcomed commercial fleet owners and heavy-equipment logistics firms from more than 80 nations, across South America, Central Asia, and East, West, and Southern Africa. Visitors gain unrestricted access to tour our assembly areas, evaluate our frame geometries, and test drive our Shacman trucks under simulated loads. Our dedicated international service desk provides fluent translation and technical consultation to ensure a seamless buying experience from day one.
Our heavy commercial vehicle export structures, factory reconditioning methodologies, and shipping frameworks fully align with leading international engineering metrics. Chengda holds official credentials from premium global verification bodies:
ISO9001:2008 Quality Management System Certification
SGS Group Verified Manufacturer & Exporter Certificate
CCC (China Compulsory Certification) for Commercial Vehicles
WMI (World Manufacturer Identifier) Heavy Vehicle Qualifications

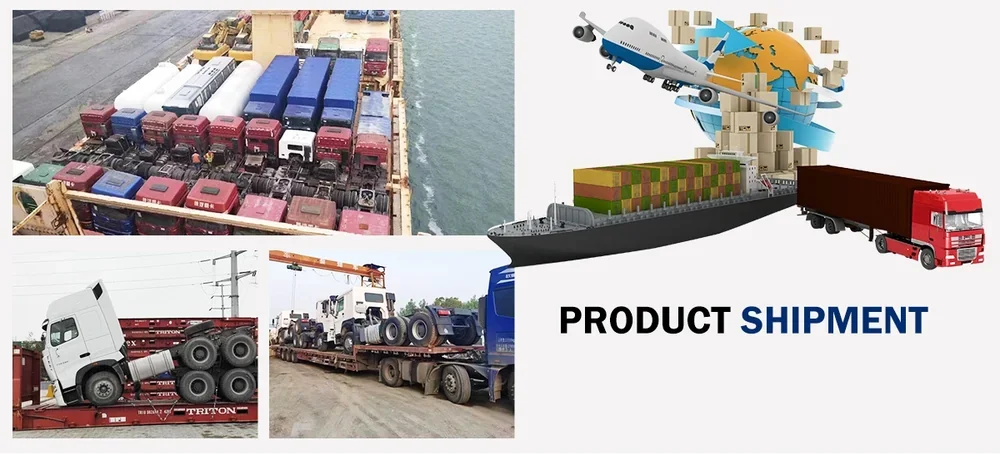

Our logistics team leverages an expansive maritime network—spanning roll-on/roll-off (Ro-Ro) vessels, bulk cargo ships, flat-rack configurations, and container transport—to lock in the most secure and economical freight options for your fleet. To combat corrosive salt air during ocean transit, every Shacman X3000 tractor head receives a thick application of specialized marine-grade anti-rust wax before port departure. We guarantee every single vehicle clears a multi-point pre-delivery inspection (PDI), keeping our 100% client satisfaction track record intact.
Q1: What are the main advantages of the Weichai WP13 engine options on the Shacman X3000?
The WP13 engine is purpose-built for heavy-load linehaul. It provides a massive torque band starting at just 1,000 rpm, meaning the driver can maintain high cruising speeds on mountain inclines without frequent downshifting. This lowers wear and tear while trimming overall fuel consumption by 3-5%.
Q2: Can we choose between a 2-inch and a 3.5-inch fifth wheel on this tractor head?
Yes, absolutely. We can configure the saddle plate with either a 50# (2-inch) JOST fifth wheel for standard highway dry vans and fuel tankers, or a 90# (3.5-inch) heavy-duty JOST fifth wheel for towing heavy-axle lowboys and mining trailers.
Q3: How do you handle warranty parts support if we operate in remote areas?
Chengda Group provides lifetime accessories support. We maintain a robust warehouse stock of original Shacman, Weichai, and FAST components (including air filters, injectors, clutch assemblies, and brake chambers). We can ship replacement parts via fast international express couriers to keep your downtime to an absolute minimum.
